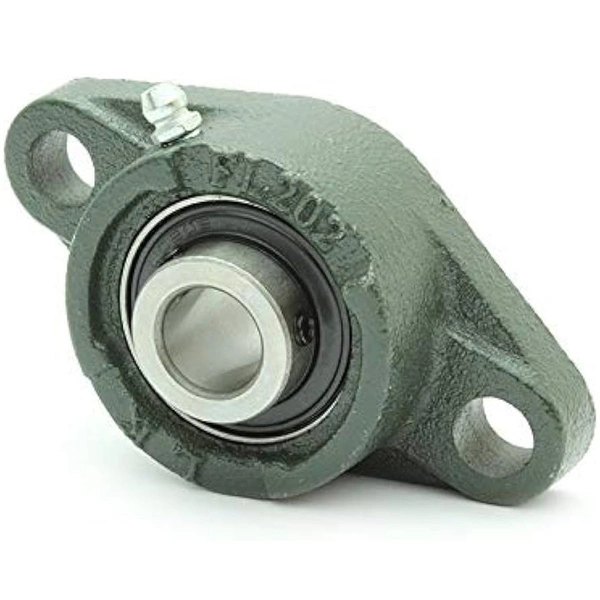

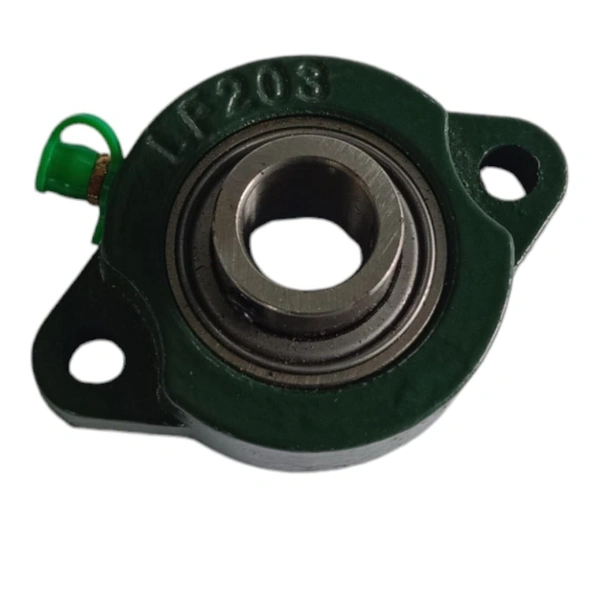

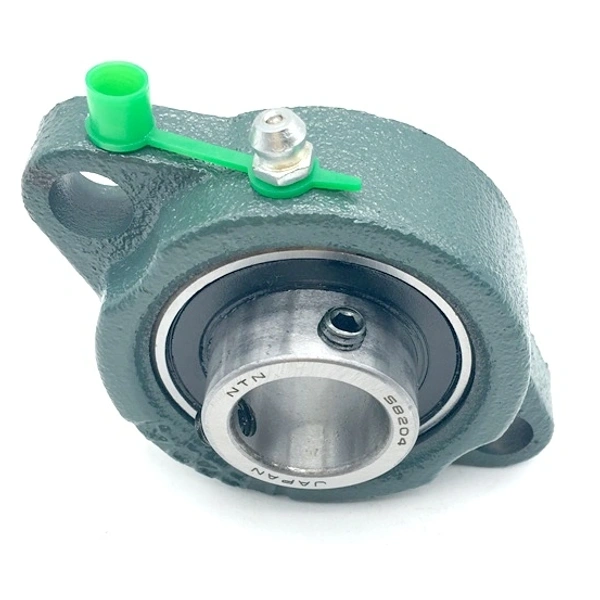

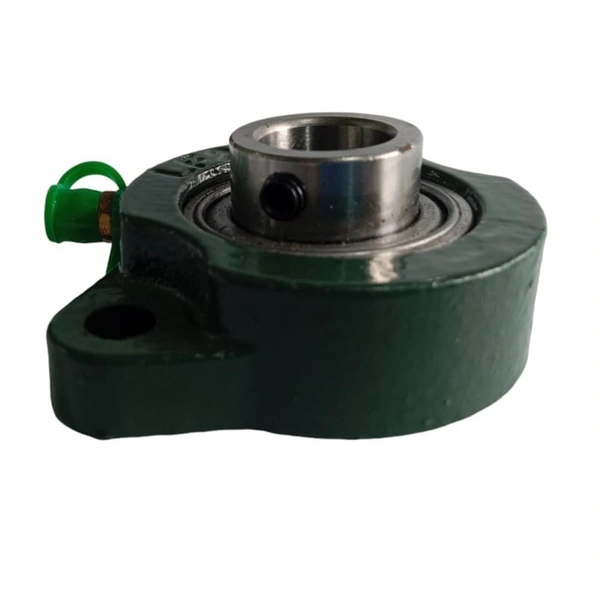

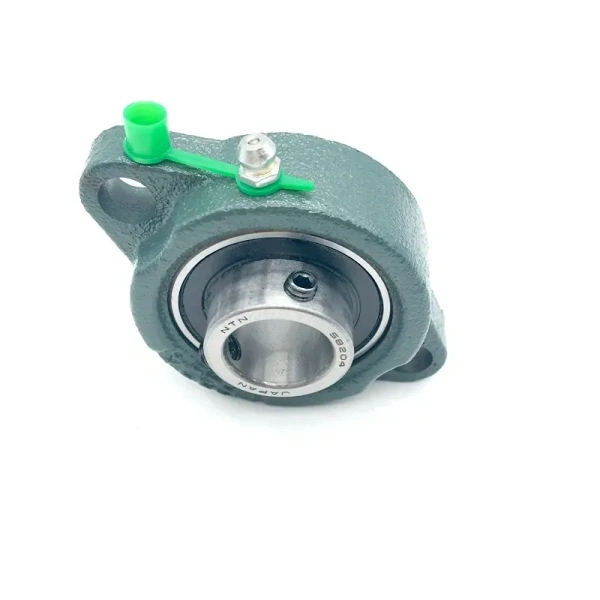

Flanged Bearing UCF203

General Specification

• Inside Ø (mm):17max.
• Operating Temperature:+100°C (briefly up to +120°C)min.
• Operating Temperature:-20°C
• Tolerance for inside Ø (mm):0,015/0
• Housing Type:4 hole flanged housing
• Unit Shaft Fastening: Grub Screws
• Bearing No. :UC 203
• Housing No .:F 204
• Ring Material: Rolling Bearing Steel
• Rolling Element Material: Rolling Bearing Steel
• Cage Material: Sheet Steel
• Housing Material: Cast Iron
• Type of lubrication: greased
• Grease Nipples: Straight Type A (180°)
• Lifetime lubricated: yes
• Norm: DIN 626-2
• Number of Mounting Holes:4
• Recommended tightening torque for shaft fastener (Nm):5
• Grub Screw:M6
• Item weight:0,63 kg
