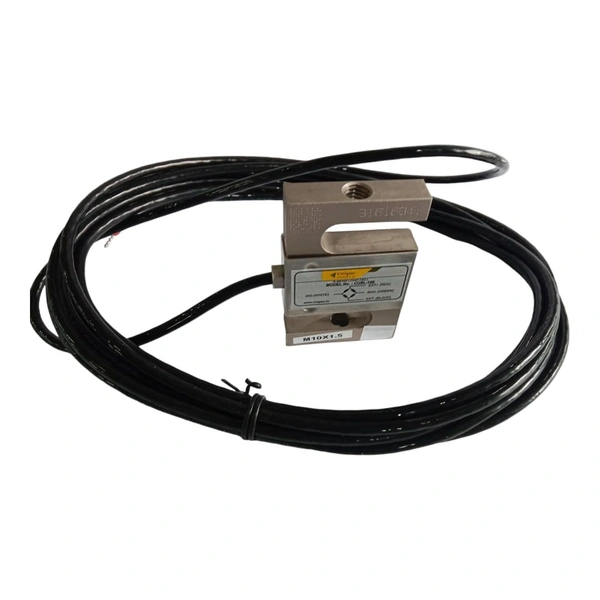

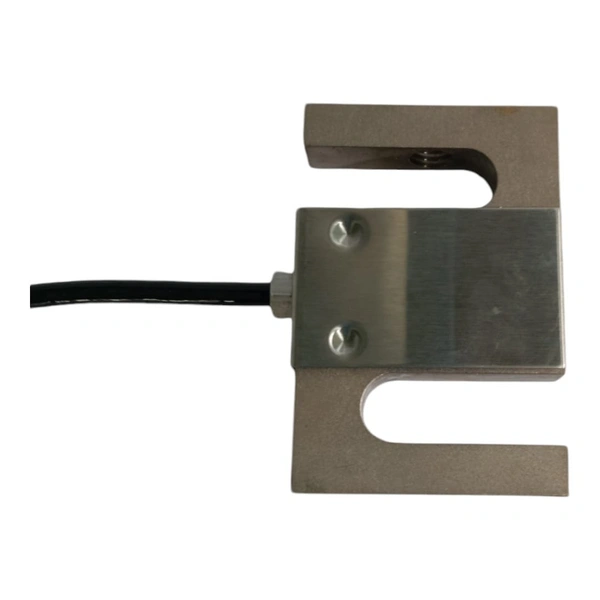

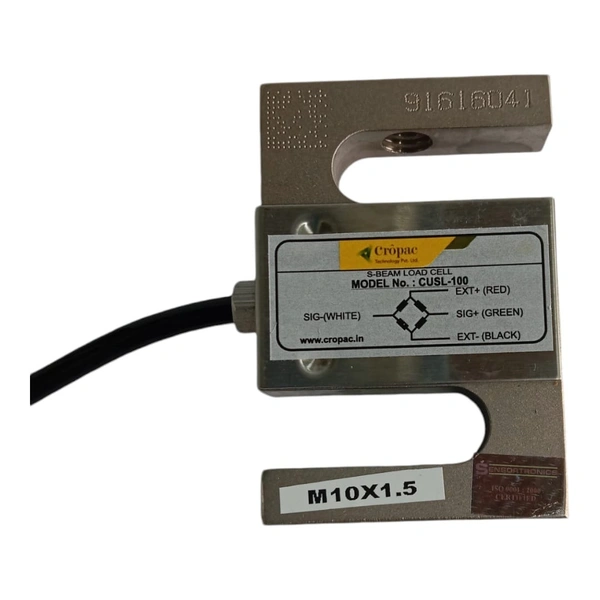

Load Cell S Type -100 Kg

General specifications

• Sensor properties
  • Sensor type: Compression/Tension load cell
  • Controlled by: Bridge input
  • Weight capacity: 100kg
  • Maximum overload: 120kg
• Electrical properties
  • Output impedance: 350 ohms
  • Supply voltage min: 5v DC
  • Supply voltage max: 18V DC
• Physical properties:
  • Cable length: 3 to 5 meter
  • Cable gauge: 20AWG
  • Material: Alloy steel
  • Screw thread size: M8
