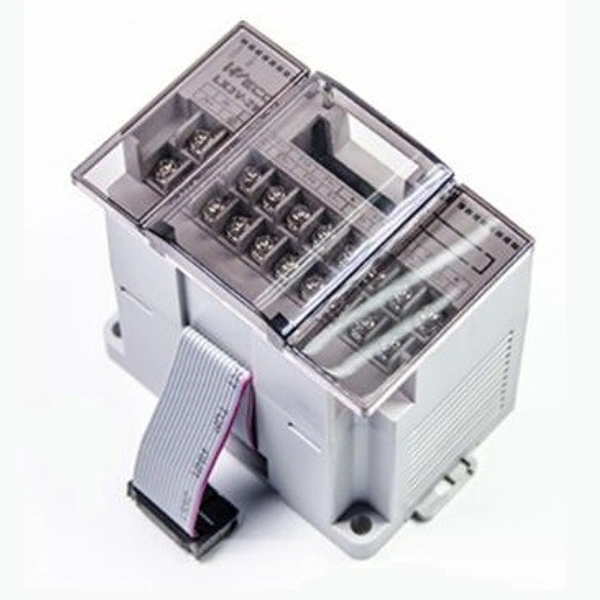

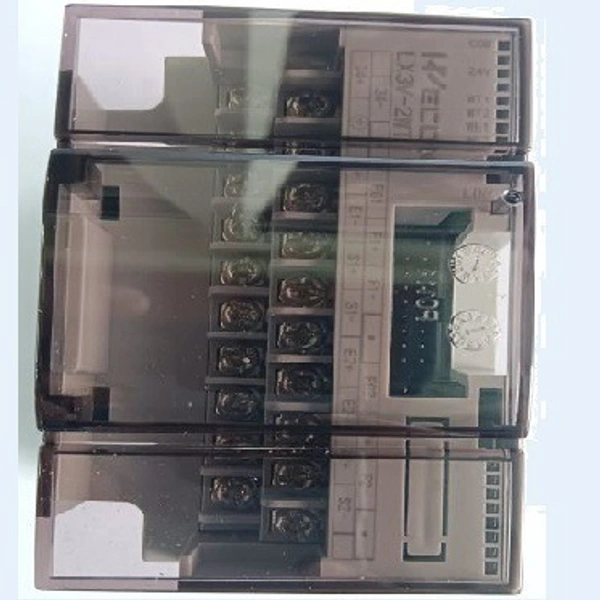

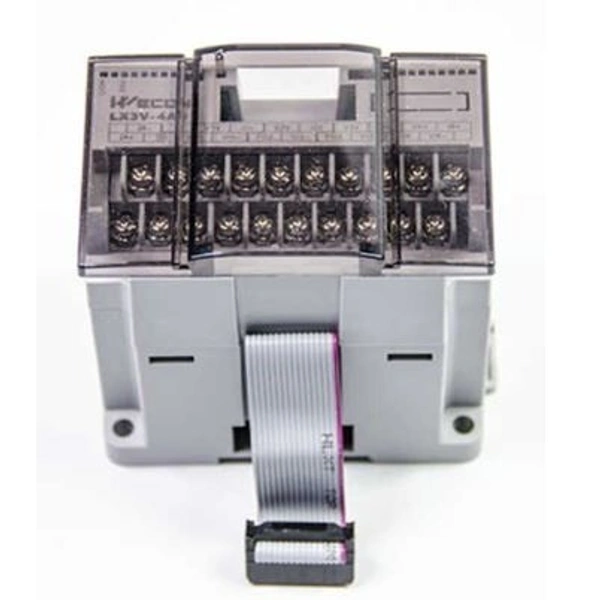

Loadcell module LX3V

General specification

• Channel: Single channel
• A/D converter: 24 bit
• Resolution: 24bit
• Speed: 7.5/10/25/50/60/150/300Hz available
• Polarity: unipolar and bipolar
• Excitation Voltage/ load: 5V, load impedance >/-200 ohm
• Sensor sensitivity: 1mV/V to 15mV/V
• Power supply: 24V+/- 20% 2VA
• Operation temperature: 0 to 60 C
• Dimension: 90(L)x58(W)x80(H) mm
